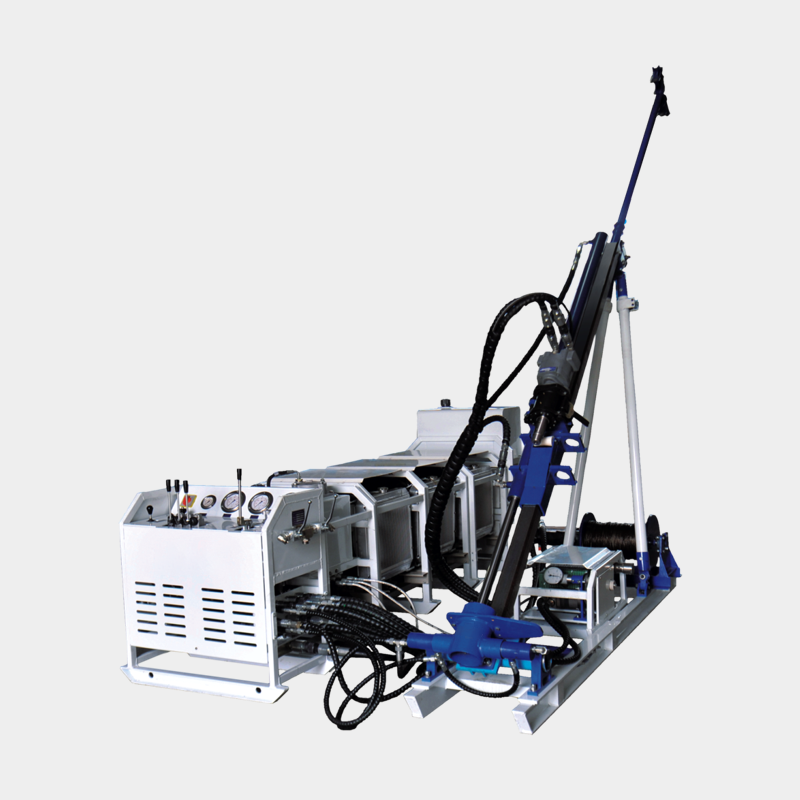

Portable Diamond Core Drill Rig EP600W
▣ Product introduction
EP600W is a multi-purpose portable hydraulic drill rig for geotechnical engineering and exploration,which is a wire line coring rig with turbo diesel engines and hydraulic system as power.
The drill rig has hydraulic drive, modular design, aircraft-grade aluminum alloy made structure. The heaviest module is 150 kg,easy to assemble and disassemble,less space required. It does not need to build special roads, avoids to destroy the surrounding environment and woodland lawn, especially suitable for the completion of core drilling in remote and sensitive environments with high quality, high efficiency and low cost.
▣ Weight of EP600W
Total weight | ≤1200Kg | ||
Power unit | 150Kgx3 | Motor | 40Kg |
Power head assembly | 35Kg | Hoist (including wire rope) | 100Kg |
Operation table | 146Kg | Mud pump module | 40Kg |
Drilling system | 115Kg | Mud agitator | 20Kg |
Holder | 35Kg | Hydraulic oil tank (full oil) | 128Kg |
▣ Technical Parameters EP600W
Power System | Diesel engine model | Kubota inline three-cylinder turbocharged diesel engine |
Rated output power | 73.5KW(24.5KWx3) | |
Max. speed | 3000RPM | |
Diesel tank capacity | 90L | |
Hydraulic System | Type | Multi-pump parallel oil supply circuit |
System control | Multi-channel pressure display, integrated operation table | |
Hydraulic oil cooling method | Water cooling | |
System pressure | 21Mpa | |
Hydraulic oil capacity | 50L | |
Rotate Unit | Drive mode | Top drive power head |
Max. speed | 50-1500RPM,continuously adjustable | |
Max. torque | 1300N.M | |
Feeding Unit | Feed beam inclination adjustment | 45°~90°(expandable to 0~90) |
Cylinder stroke | 1.8m | |
Lifting force (single/double) | 6.3t/12.6t | |
Propulsion force (single/double) | 3.2t/6.4t | |
Flash Circulation System | Mud pump drive mode | Hydraulic drive |
Max. flow | 109L/min | |
Max. working pressure | 7MPa | |
Holder | Clamping method | Chute type slip holder |
Drive mode | Hydraulic cylinder drive | |
Max. clamping diameter | 127mm | |
Hoist | Drive mode | Hydraulic motor direct drive |
Cable diameter | 6mm | |
Rope capacity | 650m | |
Max. lifting force | 26000N | |
Max. line speed | 220m/min |
