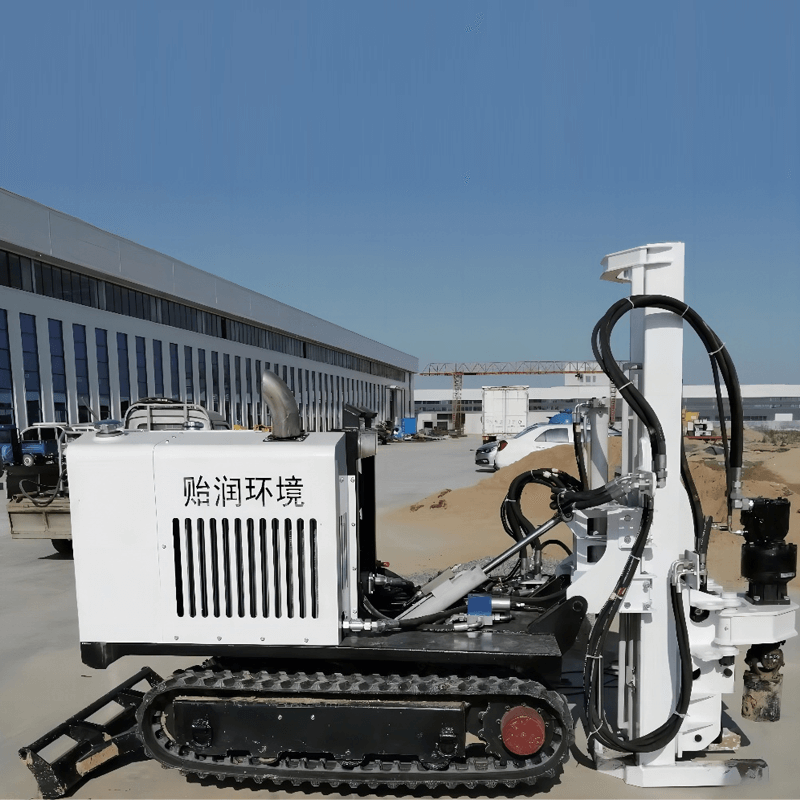

Compact Direct Push Drill Rig EP1000+
▣ Product introduction
The compact drill rig EP1000+ is an all-in-one system for soil and groundwater sampling and site remediation. It is equipped with soil sampling, soil vapor sampling, in-situ direct push injection pump and hollow stem auger. It has strong drilling capability, compact designed for easy transportation and operation, and can be used in limited spaces or height-restricted basements.
◈ Direct push soil sampling
◈ Ground/stratum crushing and drilling
◈ Direct pressure soil vapor sampling
◈ In-situ reagent injection
◈ High frequency direct push semi-closed pipe sampling
◈ Direct pressure temporary rapid water extraction
▣ Technical Parameters EP1000+
Parameter Name | Parameter Value |
Length (transport) | 2700mm |
Width (transport) | 1250mm |
Length (transport) | 1900mm |
Stroke | 1350mm |
Impact frequency | 43Hz |
Propulsive force | 70KN |
Pull-out force | 100KN |
Walking speed | 2.4/4.2km/h |
Motor power | 28.2kw |
Max. pressure | 250bar |
Torque | 4300N.M |
Speed | 56rpm |
Weight | 2t |
▣ Main Functions EP1000+
◈ Hydraulic direct push: commonly used in site surveys, efficient and fast soil sampling;
◈ Rotary drilling: commonly used in groundwater monitoring well construction or soil drilling.
