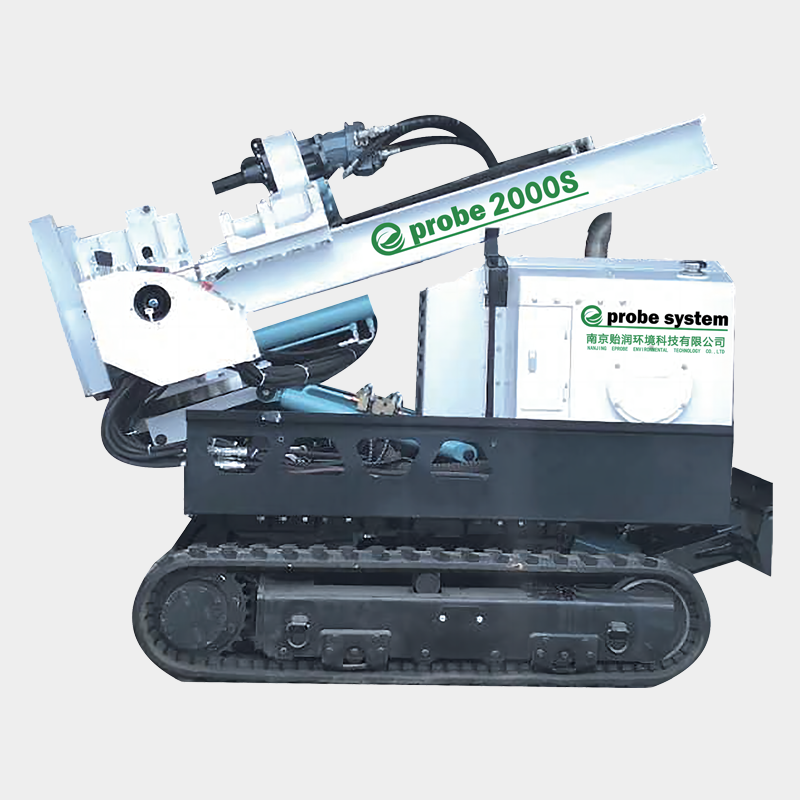

Direct Push Drill Rig EP2000S
▣ Technical Parameters EP2000S
Parameter Name | Parameter Value |
Stoke | 1800mm |
Weight | 3.7t |
Width | 1600mm |
Height (in folded state) | 2155mm |
Length (in folded state) | 2832mm |
Walking speed | 0-6km/h |
Impact frequency | 43Hz |
Side swing (along the center line) | ±3° |
Pendulum (along the midpoint) | ±7.5° |
Foot stroke | 800mm |
Track ground length | 1560mm |
Stretch | 300mm |
Max. sampling depth | 30m+ |
▣ Technical Highlights EP2000S
◈ Customized High Frequency Impact Hammer Sandvik
◈ Integrated Operating Console
◈ High Torque Screw Power Head
◈ Double Liquid Injection System
◈ Power System Yanmar
◈ Hydraulic Pump Danfoss
◈ Integrated display and control
◈ Adopt rubber crawler chassis, remote control walking, and enhanced site adaptability;
◈ Lightweight design, enhanced passability (minimum passable dimensions width*height: 1600*2155mm);
◈ Stronger self-rescue ability when encountering soft terrain;
◈ Higher impact frequency, up to 43Hz;
◈ Remote data display and task management system, which can directly display the status of on-site equipment and manage site tasks in the laboratory or on mobile phones;
◈ The rig integrates an in-situ injection system for repair agents, with an injection pressure up to 16MPa.
◈ Direct pressure soil sampling
◈ Direct pressure soil vapor sampling
◈ In-situ reagent injection
◈ Direct pressure groundwater sampling
◈ Hollow auger well construction
