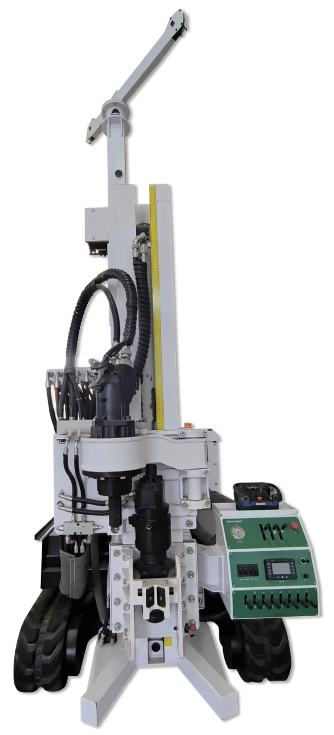

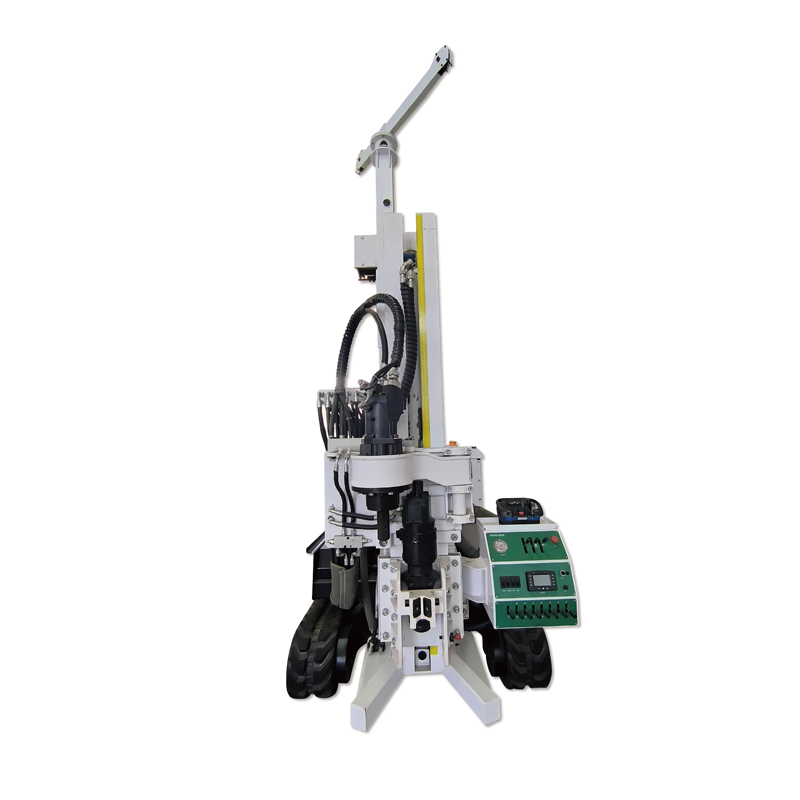

Direct Push Drill Rig EP2000E
▣ Product introduction

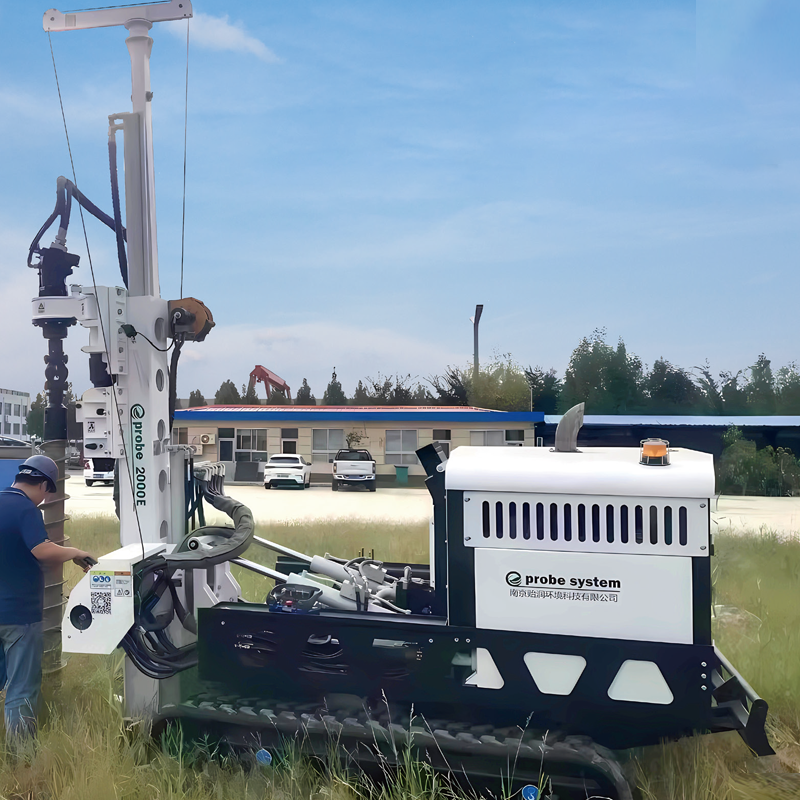

The drill rig EP2000E is an all-in-one system for soil and groundwater sampling, monitoringand site remediation with a compact platform. Applications include soil sampling, soil vapolsampling, in-situ direct push injection,rock coring, groundwater monitoring, geotechnicaland more. lt has sufficient power with low energy consumption, and has the functions otsystem fault diagnosis, satellite positioning and loT communication.
▣ Technical Highlights EP2000E
◈ Customized High Frequencylmpact Hammer from Sandvik;
◈ Engine Yanmar 51.lkW;
◈ Integrated Operating Console;
◈ Integrated Mast System;
◈ Hydraulic Pump Danfoss;
◈ Two-speed Auger Power Head Rexroth;
◈ Adaptive Electro-hydraulic System;
◈ Customized Remote Controller Scanreco CN3380;

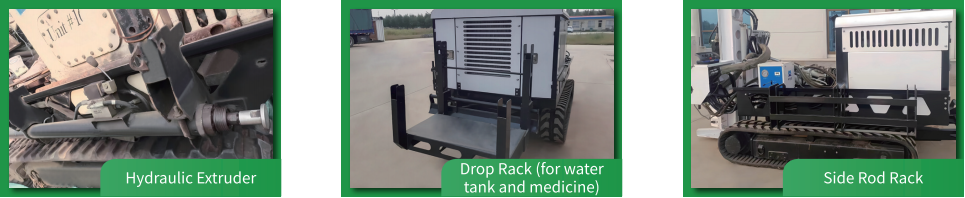

◈ Drop Rack;
◈ Side Rod Rack.
◈ Mineral sampling;
◈ Environmental exploration;
◈ Geotechnical sampling and testing;
◈ Geo-constructional drilling;
◈ Seismic drilling;
◈ Site Remediation and Risk Control;
◈ High-resolution site characterization(HRSC);
◈ Shallow rock coring(within 50m);
◈ Customized solutions.
▣ Tooling
◈ Typical Eprobesystem Tooling for the EP2000E;
◈ 1.5m Direct Push Tooling;
◈ Probe Rod Sizes: 3.25 in., 2.25 in., 1.5 in., 1.25 in.
◈ Dual Tube Soil Sampling (DT325, DT22);
◈ HF Split Spoon Sampler (2.25 in., 3.25 in.);
◈ Groundwater Sampling(SP22);
◈ Prepacked Monitoring Well Installations (2.0 in., 1.5 in., 1.0 in., 0.75 in.);
◈ HSA System (4.25 in. and 6.25 in.);
◈ MIP, LIF and HPT Tooling;
◈ SPT Sampling(Interlocking Split Spoon Sampler, Driven Casing SPT, HSA, SolidAuger, Mud Rotary).
▣ Technical Parameters EP2000E

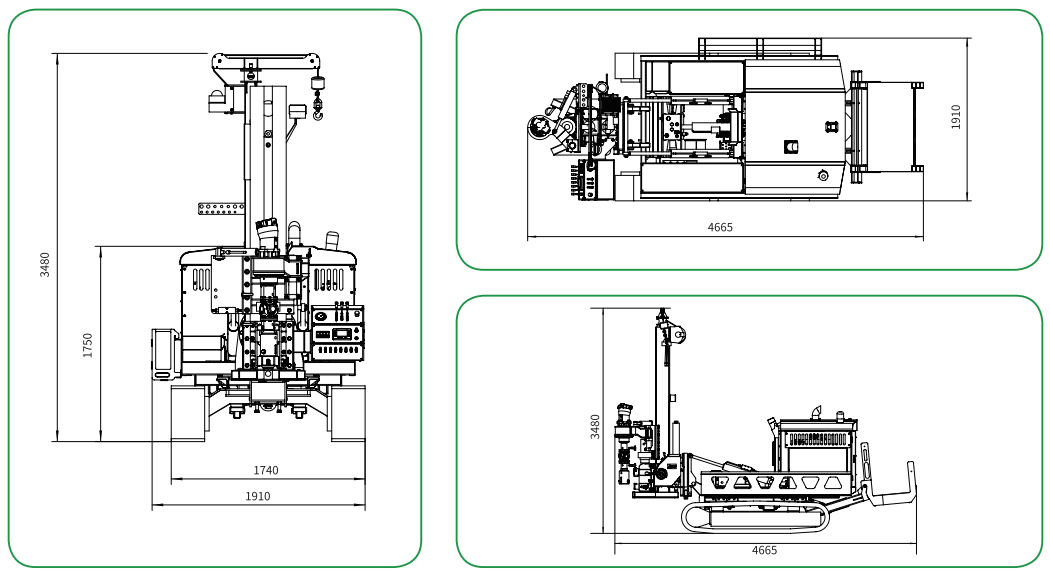

Stroke | 1,800 mm (71 in.) |
Weight | 4,540 kg (10,009 lb.) |
Length (folded) | 3,300 mm (130 in.) |
Width | 1,740 mm (69 in.) |
Height (folded) | 2,320 mm (91 in.) |
Outrigger Travel | 800 mm (31in.) |
Extension (fore and aft) | 400 mm (16 in.) |
Lateral (side to side) | 士3 degrees |
Oscillation (degrees from vertical) | 士7.5 degrees |
Pitch Angle | -6 -+68 degrees |
Rear Stabilizer Lift | 800 kg (1,764 lb.) |
Ground Speed | 0-4 kph (0-2.5 mph) |
Ground Pressure | 0.39 kg/cm2 (5.61 lb/in2) |
| Track Width | 300 mm (12 in.) |
| Estimated Track Surface Length | 1,840 mm (72 in.) |
| Continuous Working Torque of Auger | 2,570 N-m (1,896 ft.lb.) |
Max Output Torque | 5,480 N-m (4,041 ft.lb.) |
| Engine | Diesel Engine | Yanmar |
| Rated Power | 51.1 kw (69 hp) | |
| Tank Capacity | 120L (32 gal) | |
| Emission Standards | Non-road Euro V/ Tier 4F | |
| Adaptive Electro-hydraulic System | Crowd Force | 183 kN (46,116 lb.) |
| Pull Force | 277 kN (69,804 lb.) | |
| Pressure | 24.5 MPa (3,553 psi) | |
| Flow | 100Lpm (26.5gpm) | |
| Percussion Hammer | Hammer Model | DH-1016 |
| Percussion Rate | 34 Hz | |
| Weight | 118 kg (260 lb.) | |
| Remote Control CN3380 Mini-linear Transmitter+ Receiver | Power Supply | 24V |
| Battery(standard configuration) | 2 pc. | |
| Charger | 110V/220 V | |
| Receiver | PWM | |
| Protection Grade | IP65 |

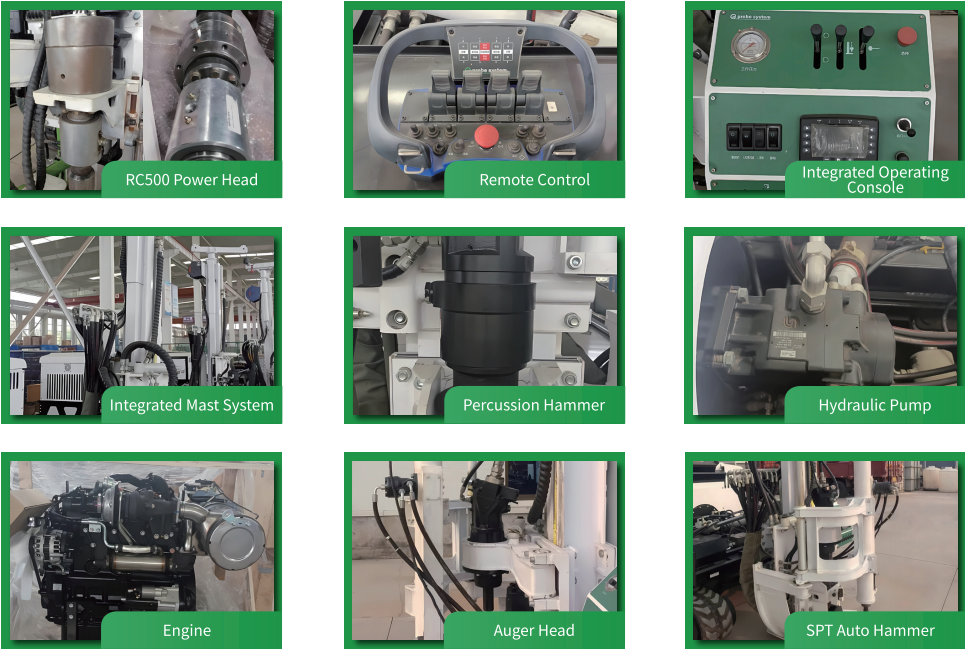

▣ Core Components
▣ Options

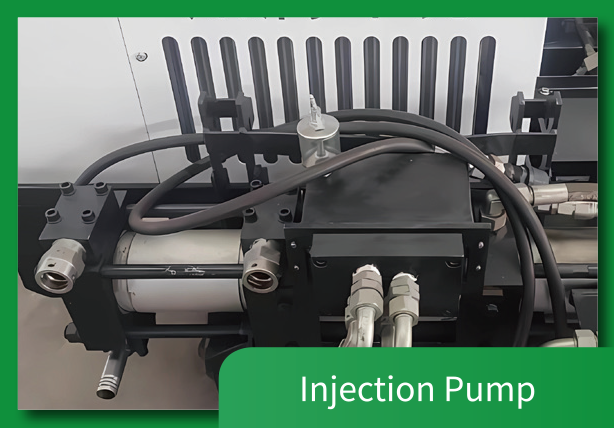

◈ Parameter Name: EZD-16
◈ Rated Flow(m³/h): 3.0
◈ Rated Pressure(Mpa): 16
◈ Piston Dia.(mm): 110
◈ Piston Travel(mm): 155
◈ Unit Weight(kg): 140
◈ Overall Dimensions (mm): 1150x430x610
