Tailing Resources Utilization Equipment
Tailing Resources Utilization Equipment

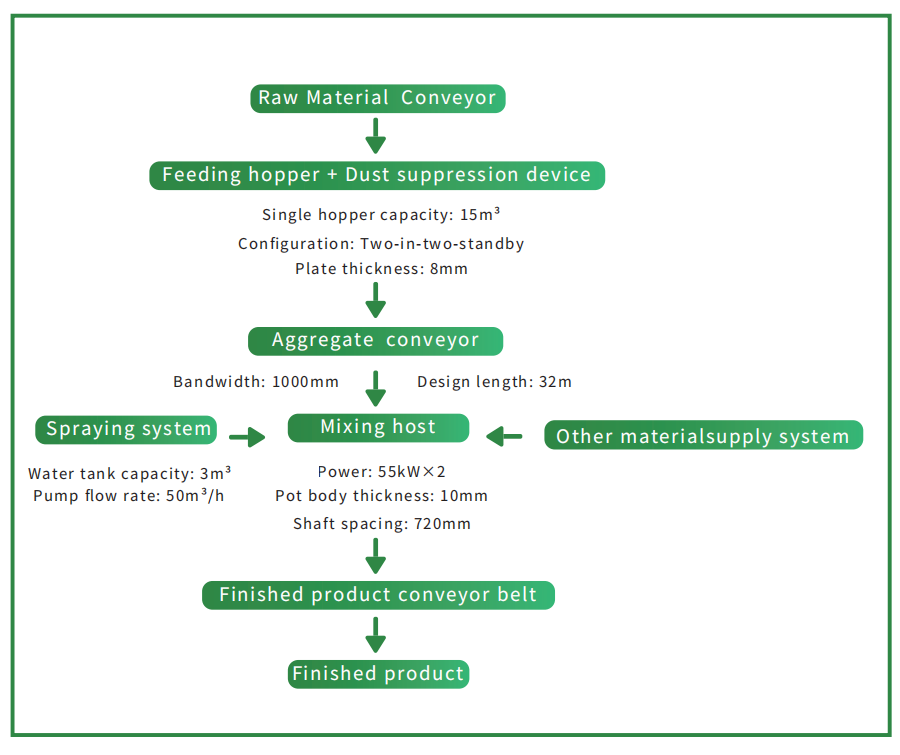

This system primarily consists of:
Material Conveying System
Powder Batching System
Mixing System
Moisture Content Adjustment System
Powder Supply System
Control System
Processing Target: Industrial solid waste (iron tailings, alkali residues, etc.)
Output: Subgrade materials and construction aggregates
System Details
① High-Viscosity Material Batching System
Mechanical arch-breaking mechanism to prevent material blockage.
Resonant sliding plate arch-breaking device with high-polymer anti-sticking lining inside the batching hopper.
② High-Speed Shearing Mixing System
Mixing shaft lined with anti-sticking high-polymer material.
Host chamber lined with high-polymer anti-stick plates to prevent material adhesion.
③ Quantitative Feeding System
Equipped with US-imported digital signal sensors (anti-interference, long-term precision stability).
Omron speed encoder (Japan) for precise speed measurement.
④ Moisture Content Adjustment System
Online near-infrared moisture monitoring on conveyor belts.
Integrated water supply system for real-time moisture control (accuracy: ±0.1%).
⑤ Powder Supply System
Dual-chamber independent design with simultaneous feeding and pneumatic replenishment.
Dedicated silos for fly ash, cement, and additives (top dust collectors to prevent secondary pollution).
Key parameters:
Single hopper capacity: 15 m³
Liner thickness: 30 mm
Feeder bandwidth: 1000 mm (length: 32 m)
⑥ Control System
Integrated with precision instruments and automation for continuous, refined operation.
